Model 07 Head Integral Trunnion Mount (ISO MT1)
These mounts are for applications in which the machine member travels in a curved path in one plane.Either mount can be used both in compression (push) and tension (pull) applications. When used in compression applications, head trunnion mounts provide a longer maximum stroke than cap trunnion mounts.The trunnion pins are an integral part of the head and can be sleeved to provide an extremely tight fit to the mating machine member and permit curvilinear motion.It is recommended that rigidly mounted pillow blocks with bearings at least as long as the trunnion pins be used. The pillow blocks should be installed as close to the shoulder of the trunnion as possible.

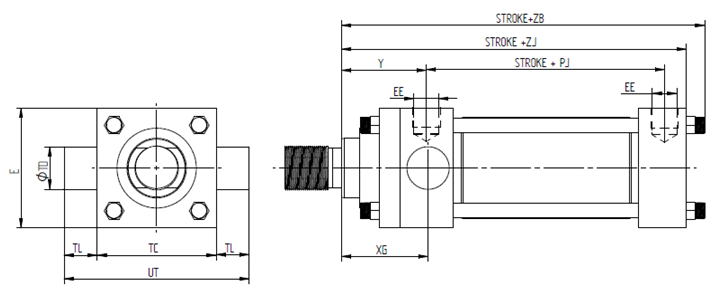

| Bore | E | EE BSP | TC | TD | TL | UT | XG | Y | Stroke+ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZJ | ZB | |||||||||
| 25 | 40 | 1/4" | 38 | 12 | 10 | 58 | 44 | 50 | 53 | 114 | 121 |
| 32 | 45 | 1/4" | 44 | 16 | 12 | 68 | 54 | 60 | 56 | 128 | 137 |
| 40 | 63 | 3/8" | 63 | 20 | 16 | 95 | 57 | 62 | 73 | 153 | 166 |
| 50 | 75 | 1/2" | 76 | 25 | 20 | 116 | 64 | 67 | 74 | 159 | 176 |
| 63 | 90 | 1/2" | 89 | 32 | 25 | 139 | 70 | 71 | 80 | 168 | 185 |
| 80 | 115 | 3/4" | 114 | 40 | 35 | 178 | 76 | 77 | 93 | 190 | 212 |
| 100 | 130 | 3/4" | 127 | 50 | 40 | 207 | 71 | 82 | 101 | 203 | 225 |
| 125 | 165 | 1" | 165 | 63 | 50 | 265 | 75 | 86 | 117 | 232 | 260 |
| 160 | 205 | 1" | 203 | 80 | 63 | 329 | 75 | 86 | 130 | 245 | 279 |
| 200 | 245 | 1-1/4" | 241 | 100 | 80 | 401 | 85 | 98 | 165 | 299 | 336 |
